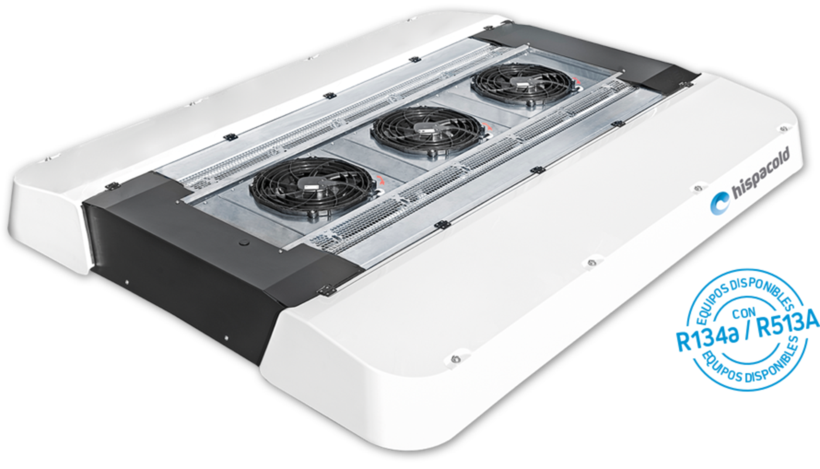

Breeze Range

Combining design, power, and sustainability, Hispacold has developed a new range of HVAC systems that covers all the needs of electromobility and fuel buses and coaches for any climate zones and transport applications (city, intercity and coaches).

Breeze Range

A new wave of HVAC

Fuel
Fuel
Trolley
Trolley
Hybrid
Hybrid
Electric
Electric

Main features

Breeze Range
  • Innovative materials
  • New design
  • 60% less refrigerant charge
  • minimum weight and size
  • ease installation
  • air extraction
  • adaptabile to all types of vehicles
  • mechanical fixation
  • free cooling 0-100%
Download brochure PDF Download technical sheet
Select your configuration
Breeze 100

Breeze 100

SERIAL PERFORMANCE:
> Up to 34 kW for cooling
> Weight from 91 kg
> Adaptability to all roof radii
> Refrigerant charge from 1,9 kg R134a
> Compatible with R513A
> Modular system
> Short delivery time
> New design
> Mechanical fixing to roof top
> Free cooling adjustable 0-100%
> Light and resistant materials
> 480 h Salt spray chamber (ISO 9227-NSS)

OPTIONAL:
> Air extraction
> Water heating coils
> G4 particle filter
> eCo3 Air Purifier
> Fans and blowers with diagnostic
> CO2 Sensor



Breeze 200

Breeze 200

SERIAL PERFORMANCE:

> Up to 44 kW for cooling
> Weight from 91 kg
> Adaptability to all roof radii
> Refrigerant charge from 1,9 kg R134a
> Compatible with R513A
> Modular system
> Short delivery time
> New design
> Mechanical fixing to roof top
> Free cooling adjustable 0-100%
> Light and resistant materials
> 480 h Salt spray chamber (ISO 9227-NSS)

OPTIONAL:
> Air extraction
> Water heating coils
> G4 particle filter
> eCo3 Air Purifier
> Fans and blowers with diagnostic
> CO2 Sensor

Breeze 300

Breeze 300

SERIAL PERFORMANCE:

> Weight from 91 kg
> Adaptability to all roof radii
> Refrigerant charge from 1,9 kg R134a
> Compatible with R513A
> Modular system
> Short delivery time
> New design
> Mechanical fixing to roof top
> Free cooling adjustable 0-100%
> Light and resistant materials
> 480 h Salt spray chamber (ISO 9227-NSS)

OPTIONAL:
> Air extraction
> Water heating coils
> G4 particle filter
> eCo3 Air Purifier
> Fans and blowers with diagnostic
> CO2 Sensor

Breeze 100e

Breeze 100e

SERIAL PERFORMANCE:
> Up to 46 kW for cooling
> Weight from 91 kg
> Adaptability to all roof radii
> Refrigerant charge from 1,9 kg R134a
> Compatible with R513A
> Modular system
> Short delivery time
> New design
> Mechanical fixing to roof top
> Free cooling adjustable 0-100%
> Light and resistant materials
> 480 h Salt spray chamber (ISO 9227-NSS)

OPTIONAL:
> Air extraction
> Water heating coils
> G4 particle filter
> eCo3 Air Purifier
> Fans and blowers with diagnostic
> CO2 Sensor

Hybrid
Hybrid
Electric
Electric
Download technical sheet
Breeze 200e

Breeze 200e

SERIAL PERFORMANCE:

> Up to 46 kW for cooling
> Weight from 91 kg
> Adaptability to all roof radii
> Refrigerant charge from 1,9 kg R134a
> Compatible with R513A
> Modular system
> Short delivery time
> New design
> Mechanical fixing to roof top
> Free cooling adjustable 0-100%
> Light and resistant materials
> 480 h Salt spray chamber (ISO 9227-NSS)

OPTIONAL:
> Air extraction
> Water heating coils
> G4 particle filter
> eCo3 Air Purifier
> Fans and blowers with diagnostic
> CO2 Sensor

Hybrid
Hybrid
Electric
Electric
Download technical sheet

Components

660cc Ecoice Compressor

The most compact design of the market (4V 660cc) High fiability and efficiency Refrigerant R134a Less oil Compressor developed and manufactured by Hispacold Low noise and vibrations transmission Electro magnetic clutch with our own design for applications on hard conditions

See options
Ecomaster COMFORT

Top range automatic control that regulates comfort inside the bus, not only at the driver's zone, but also at the passengers' area.

See options
netiOs

The netiOs range of control panels is characterized by its modularity, thanks to the Master-Slave concept, its simple, robust, flexible, intuitive design, and the ease with which it can be integrated.

See options
Ecoflow Standard

Ecoflow Standard central heating of Hispacold is a device that allows the regulation of the heating water flows through the different circuits of the vehicle.

See options

hybrid and electric

netiOs

The netiOs range of control panels is characterized by its modularity, thanks to the Master-Slave concept, its simple, robust, flexible, intuitive design, and the ease with which it can be integrated.

See options
Cooler

Cooling of engines and other electrical components in the power train.

See options
Ecoflow Standard

Ecoflow Standard central heating of Hispacold is a device that allows the regulation of the heating water flows through the different circuits of the vehicle.

See options
